1500kW Gas Generator Set

Now the series of gas engine power can be up to 1600 kw. It adopts the most advanced technology of air-fuel ratio control, engine performance, fuel economy, reliability and security were greatly improved, and its main performance index has reached the international advanced level, can form a complete set of gas generator and compressor sets, meet the needs of urban and wellsite power supply and compressor markets.

Contact Now

Product Details

100% independent intellectual property rights

International mainstream Control Technology (EGS Engine Intelligent Management System)）

International advanced air-fuel ratio control technology (TECJET air-fuel ratio automatic regulation)

Large flow and high pressure intake system can adapt to a wide range of concentration changes

Low pressure intake and rarefied combustion control technology (suitable for low pressure gas, better emission)

Advanced genset management module (IG-NT automatic synchronization and automatic load distribution)

Online maintenance technology (continuous trouble-free operation time more than 2500 hours)

Digital monitoring technology (full monitoring of engine thermal parameters and genset electrical parameters)

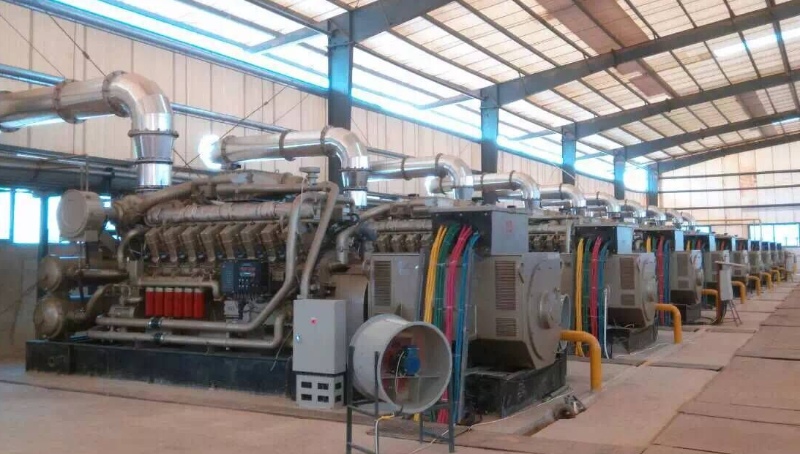

Distributed energy system (electric-thermal system, electric-hot-cold system)

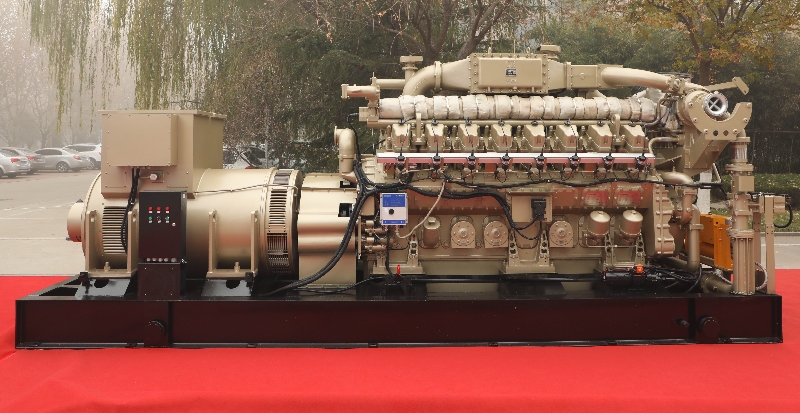

1500kW Gas Generator Set

1) Gas generating unit
Gas gen-set model	1500GF-T
Gas engine model	H16V190ZLT-2
Rated power	1500kW
Rated frequency	50Hz
Rated power factor	0.8(Lag)
Rated voltage	0.4KV
Rated speed	1000r/min
Oil consumption rate	≤1.0g/kWh
Generator efficiency	≥40.4%
Starting mode	Electric start (DC 24V)
Cooling mode	Closed water cooling
Operating mode	Electric control
Connection model	Elastic coupling
Stabilized voltage regulation	<±2.5%
Voltage fluctuation	±0.5%
Instantaneous voltage regulation	-15%～+20%
Voltage recovery time	1.5s
Stabilized frequency regulation	0～5%（Adjustable ）
Frequency fluctuation	0.5%
Instantaneous frequency regulation	±10%
Frequency recovery time	7 s
Overall Dimensions	9093 X 2180 X 2786 mm
Weight	29t

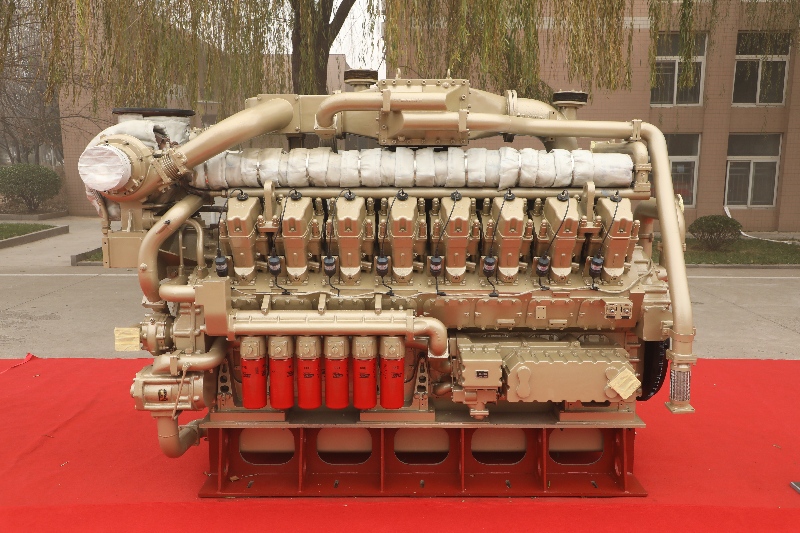

2) Gas engine
Model	H16V190 Engine
Fuel	Oilfield associated gas
Type	four stroke plug ignition, water cooled, turbo-turbocharged and after-cooled
No. of Cylinder & Cylinder Arrangement	16-Cylinder,V-type
Bore ×Stroke	190mm×255mm
Rated speed	1000r/min
Rated power	1600kW
Supply gas pressure	1～4bar
Gas consumption rate	≤9000kJ/kWh
Oil consumption	≤1.0 g/kW·h
Lubrication method	Pressure and splash lubrication
Direction of rotation	Counter-clockwise(facing to flywheel)
3) Alternator
Rated power	1500KW/ 1875KVA
Rated voltage	0.4kV
Rated currency	2706.41A
Rated frequency	50Hz
Rated power factor	0.8(Lagging)
Rated speed	1000r/min
Temperature rise grade	F
Insulation grade	H
Altitude	≤1000m
Level of protection	IP55
Ventilation method	Self-ventilation
Excitation mode	Permanent magnet self-excited constant voltage (AVR)
Rated efficiency	≥94%
Relative voltage setting range	±5%
Instantaneous voltage deviation	±1%
Instantaneous voltage deviation when the load increase	-15%
Instantaneous voltage deviation when the load decrease	+20%
Recovery time	＜1.5
Short circuit current capability	300%In: 2s
4) Main electrical performance parameters
Steady State Voltage Regulation	Single operation：±1% Parallel operation：±2.5%
Transient voltage regulation	-15%～+20% UN
Overload	110% rated load operation for 1 hour ( 6 hours for the cycle )
Over-current multiple	1.5IN, Time 2 minute
The ability of keep short	Excitation system provides three times of rated current Continued current, after 5 sec duration the generator must be unloaded
Steady State Voltage Regulation	Single operation：±1% Parallel operation：±2.5%
Transient voltage regulation	-15%～+20% UN
Overload	110% rated load operation for 1 hour ( 6 hours for the cycle )
Over-current multiple	1.5IN, Time 2 minute
The ability of keep short	Excitation system provides three times of rated current Continued current, after 5 sec duration the generator must be unloaded
5) Safety protection system
Alarm and trip-off for over/under output voltage	Alarm and trip-off for one phase ground fault
Alarm and trip-off for over/under frequency	Alarm for over high temperature of cooling water
Alarm and trip-off for reverse power	Alarm for over high temperature of oil
Alarm and trip-off for output overload	Alarm and trip-off for low oil pressure
Alarm and trip-off for over speed	Alarm and for low voltage of batteries
Inlet gas anti-explosion protection and crankcase protection

1500kW Gas Generator Set

After-sales service

1. We have professional engineers to answer your questions during pre-sales consultation.

2. There are engineers in the sale for you to debug and train the generator set.

3. We have telephone engineers who can provide technical support 24 hours a day worldwide.

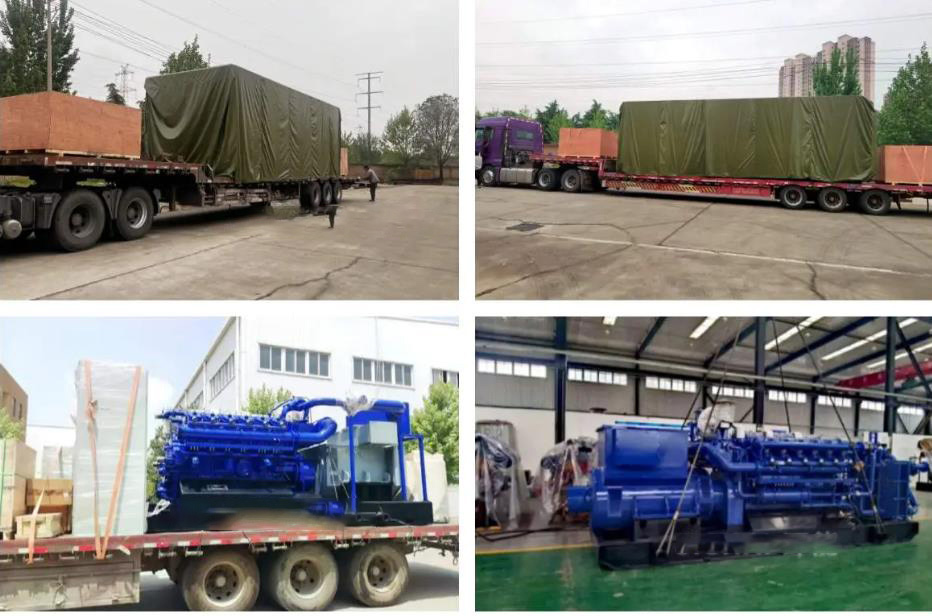

Packaging and delivery

Products are packaged in bulk, container, standard export packaging or custom packaging. Then select the appropriate means of transport according to the number of boxes. The goods are inspected many times before shipment to ensure that the products are in good condition and that every delivery we make is to the satisfaction of our customers.
